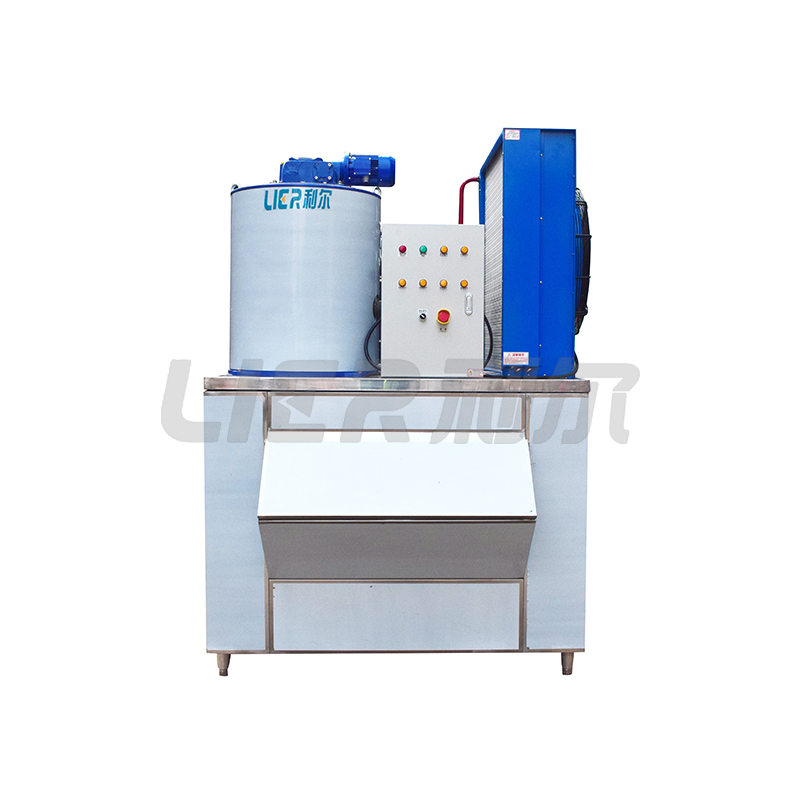

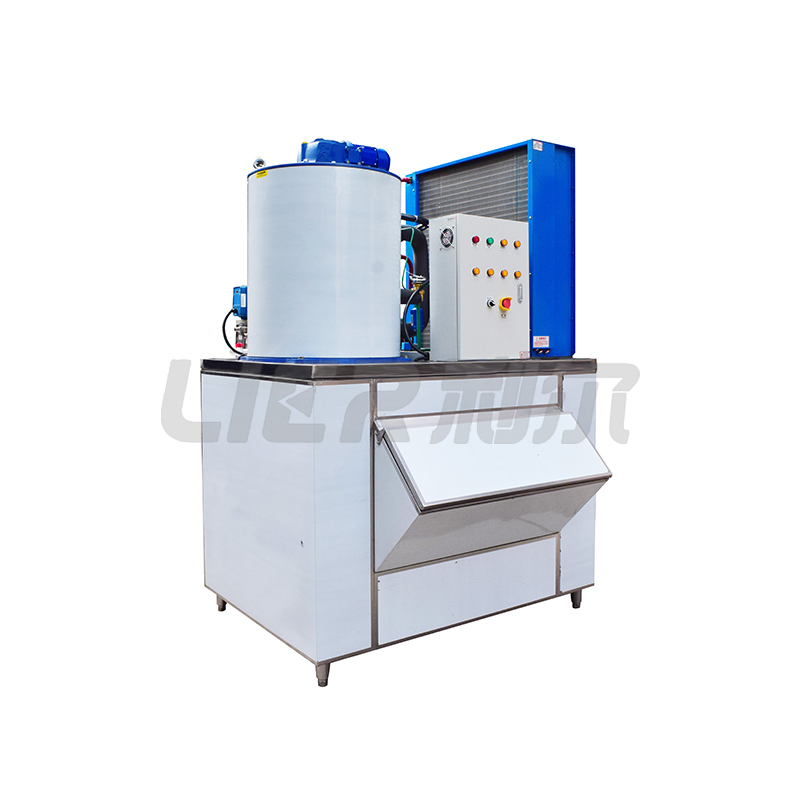

Small size flake ice machine is suitable for supermarkets, cafeterias, hot pot restaurants, aquatic processing, food processing, vegetable transportation and other ice places.
Commercial ice machine parts adopt imported famous brand refrigeration equipment parts.
Compressor：Adopt Italian imported brand, Aspala 1.5p compression.
Control system：South Korea PLC programmable automatic microcomputer program control, to achieve automatic operation, automatic fault alarm protection, one-button operation, no need for personnel
to watch.
Flake ice evaporator：The inner wall is plated with carbon steel (food grade stainless steel can be customized) and the outer wall is made of stainless steel.
The skate is made of all stainless steel at one time.
Bearing NSK imported from Japan
The spindle is made of all 304 stainless steel.
The applicable fields of commercial ice slices are as follows:
Cooling and keeping fresh of aquatic products in aquatic products store：The use of flake ice can not only prevent the deterioration and decay of seafood, but also prevent the dehydration
and frostbite of aquatic products. The melting ice water can also wash the surface of seafood and remove the bacteria and odor from seafood to achieve the ideal fresh-keeping effect.
Cafeteria cooling and keeping fresh：The effect of low temperature and large paving area of slice ice is used to preserve seafood, fruits and vegetables in the cafeteria, so as to achieve
the purpose of cooling and keeping fresh.
Supermarket seafood preservation：The ice surface is dry and smooth, does not scratch the fish surface, maintains the air permeability of the lower seafood, ensures the original taste of
the product, and prevents the loss caused by dehydration and anoxia.
Food processing cooling：①A large amount of heat is generated during mixing in bread production, which needs to be cooled with ice to prevent fermentation.②Fish balls and meatballs need to
be cooled with ice in the processing process to ensure the freshness and processing quality of the products.
Basic information
Flacke ice machine model
LR - 2T
Total power(KW)
8.31
Power supply
3P / 380V / 50HZ
Machine weight(KG)
440
Unit measuerment (L*W*H)mm
1500*1095*1050
Functional parameters
Refrigerant
R22 / R404A
Refrigeration capacity(KW)
10.3
Daily output(kg / 24h)
2000
Noise
≤55Db
Cooling type
Air-cooled / water-cooled
Compressor brand
Danfoss / Bitzer
Evaporator material
Carbon steel plating
Ice thickness
1.5-2.2(mm）
Freezer size(L*W*H) mm
1500*1350*1150
For details and more models, please contact customer service.
Commercial flacke ice machine
Warranty standard
Whole machine：18 months
Main parts：18 months
Details of main parts：Including compressors, compressor accessories, evaporators, condensers, electric boxes and other electrical devices, if there is damage, we will replace the damaged
parts free of charge and guide customers to carry out maintenance. For details, please contact the company.
After 18 months, the maintenance fee will be charged normally according to the standard.
Mode of payment
①In the use of the contract, after the two parties sign and seal the agreement, the buyer will pay for it, and the factory will begin to make the machine after receiving the deposit.
②The buyer pays the full amount of the machine and the factory delivers the goods on the same day after the machine is completed.
Transportation
①The packing is packed in ordinary wooden cases.
②Transport by sea and rail.
Matters needing attention
The production cycle of the machine is 1-2 weeks, and the specific specifications of the machine shall prevail.
