It is mainly used in ice places such as food processing, poultry slaughtering, aquatic products processing, concrete cooling, transportation of fresh food materials, etc.
The parts of industrial ice maker adopt imported famous brand parts of refrigeration equipment.
The compressor is equipped with high-pressure screw compressor, which can improve the energy efficiency ratio under the premise of ensuring enough ice production, so as to save energy and
reduce customer consumption.
The parts used in the refrigeration equipment of the ice maker are imported from the United States, Germany, Japan and advanced technology brands to ensure performance.
Basic information
Flacke ice machine model
LR - 5T
Total power(KW)
23.2
Power supply
3P / 380V / 50HZ
Machine weight(KG)
780
Unit measuerment (L*W*H)mm
1700*1550*1610
Functional parameters
Refrigerant
R404A
Refrigeration capacity(KW)
25.8
Daily output(kg / 24h)
5000
Noise
≤55Db
Cooling type
Air-cooled / water-cooled
Compressor brand
Bitzer / Hanbell
Freezer size(L*W*H) mm
2000*2000*1800
Ice thickness
1.5-2.2(mm）
For details and more models, please contact customer service.

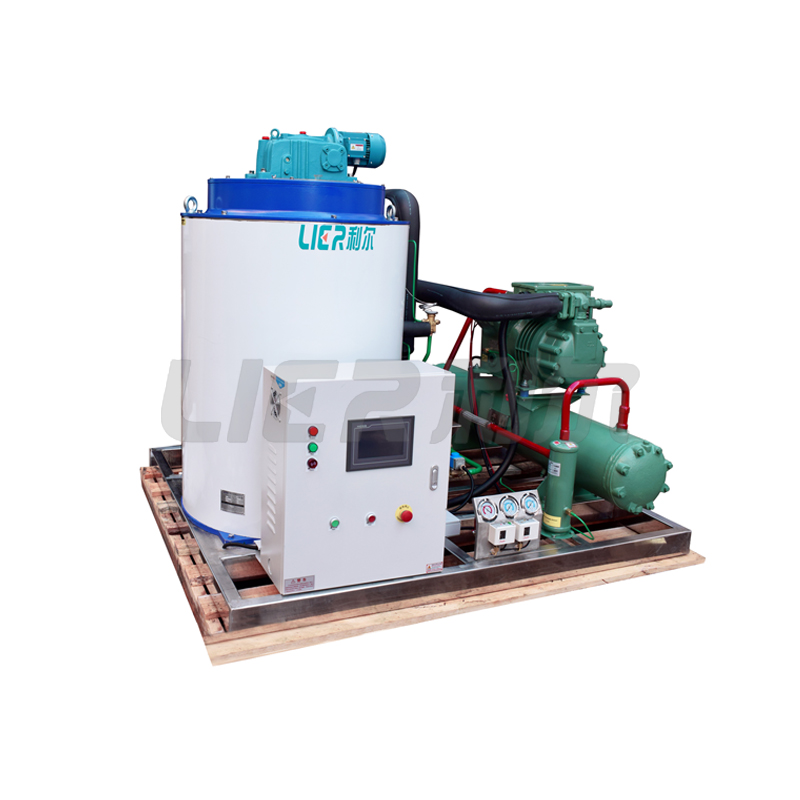

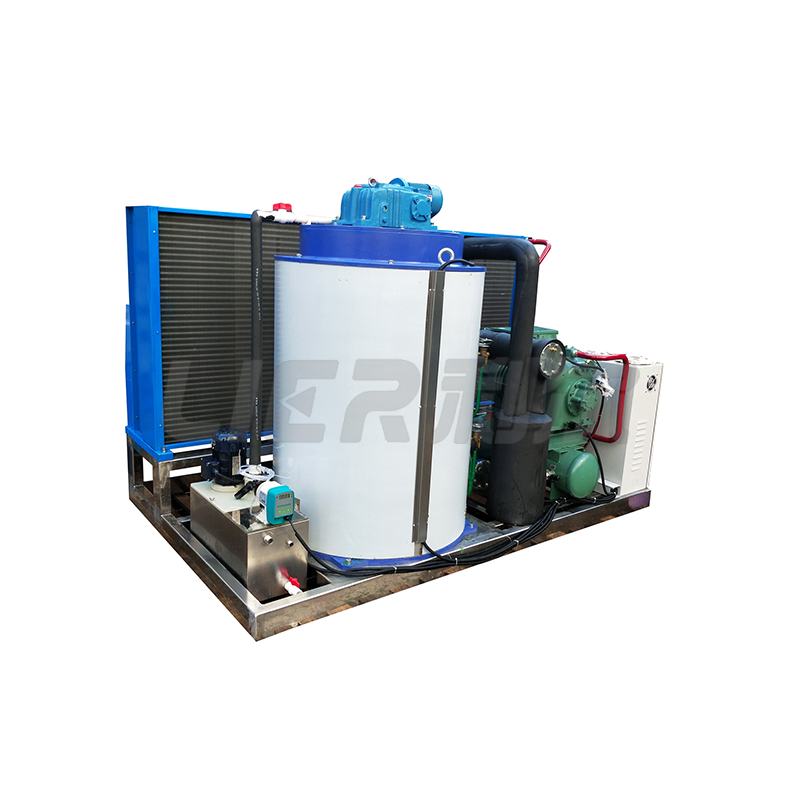

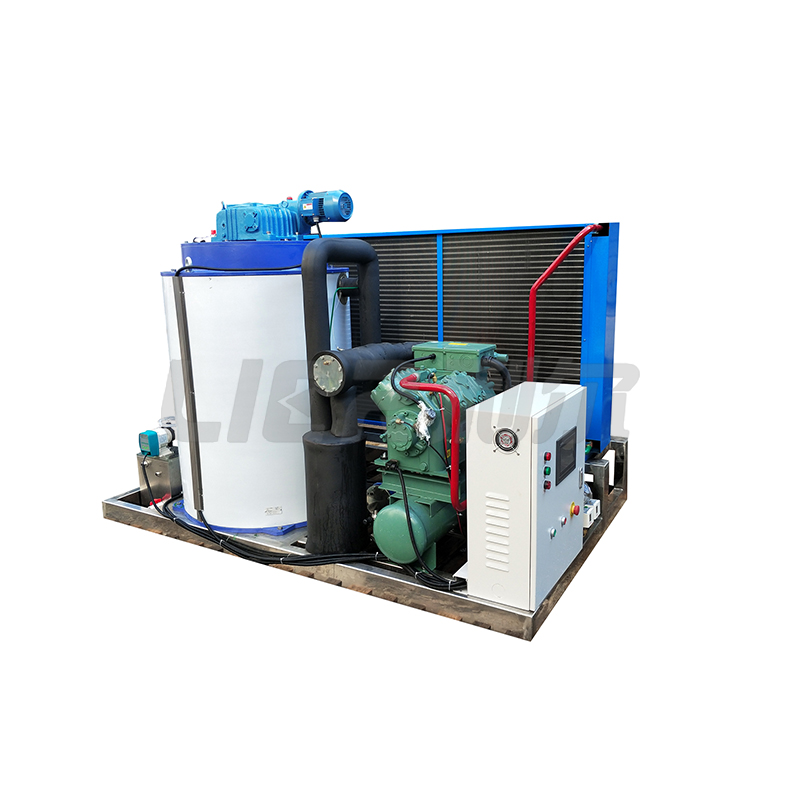

Industrial flake ice machine
Warranty standard
Whole machine：18 months
Main parts：18 months
Details of main parts：Including compressors, compressor accessories, evaporators, condensers, electric boxes and other electrical devices, if there is damage, we will replace the damaged
parts free of charge and guide customers to carry out maintenance. For details, please contact the company.
After 18 months, the maintenance fee will be charged normally according to the standard.
Mode of payment
①In the use of the contract, after the two parties sign and seal the agreement, the buyer will pay for it, and the factory will begin to make the machine after receiving the deposit.
②The buyer pays the full amount of the machine and the factory delivers the goods on the same day after the machine is completed.
Transportation
①The packing is packed in ordinary wooden cases.
②Transport by sea and rail.
Matters needing attention
The production cycle of the machine is 1-2 weeks, and the specific specifications of the machine shall prevail.
10-ton ice machine model standard-cooling mode: water cooling (can be customized into air cooling).
The standard working condition of 10-ton ice maker-ambient temperature 25 ℃, water supply temperature 15 ℃, evaporator temperature-22 ℃, condenser temperature 40 ℃.
Maintenance knowledge of 10-ton ice maker-average cleaning of the inner wall of the evaporator once every 2 months and cleaning of water plates, water tanks, pumps, salt pumps and salt buckets
every 15 days.
